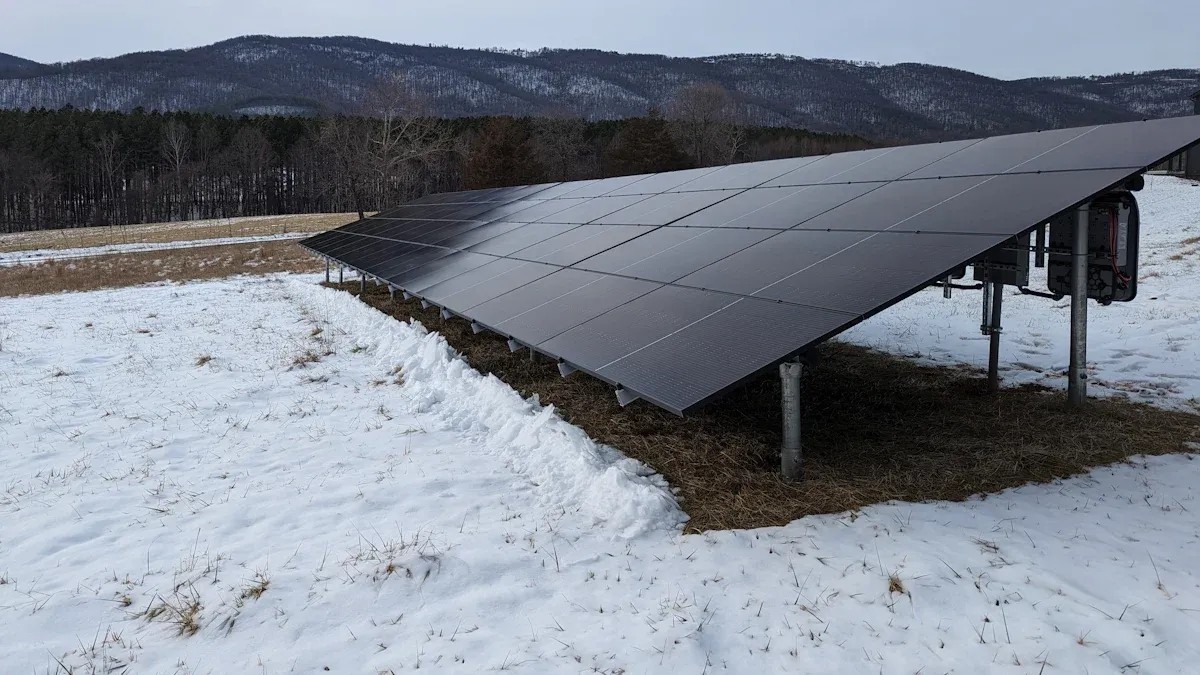

how to install a ground mount solar system？

Ready to start a ground solar mounting project? You can split the job into five main steps. First, prepare the site. Next, gather all your materials. Then, build the structure. After that, install the panels. Last, do the electrical work. Planning each step helps you avoid mistakes. Some mistakes are skipping checks, guessing energy needs, or forgetting safety. Many people have problems by not prepping the site. Some use the wrong equipment. Stay safe and measure everything twice. This will help you have a smooth installation.

Common mistakes to watch out for:

• Forgetting about the pre-installation process

• Not getting help installing your solar system

• Neglecting the electrical prep work

• Ignoring safety concerns with DIY solar panels

• Overtightening nuts, bolts, and clamps

Key Takeaways

• Get your site ready first. Pick a spot with lots of sunlight. Make sure trees or buildings do not block the sun.

• Collect all the things you need before you start. You will need strong metal poles, solar panels, racking systems, and safety gear.

• Build a strong frame for the solar panels. Use concrete to make it steady. Make sure all parts are tight but not too tight.

• Put the solar panels in the right way. Line them up so they look even. Make sure they are fixed well to the racking system.

• Connect the wires safely. Pick series or parallel wiring for your energy needs. Check the polarity before you finish the connections.

• Follow the rules in your area and get permits. Inspections help make sure your system is safe.

• Take care of your system often. Clean the panels and look for damage. Watch how your system works to keep it running well.

• Ask an expert for help if you need it. Professionals can help you avoid mistakes and make sure you install it right.

1. Site Location And Preparation

Picking the best spot for your ground solar mounting system is important. You want your panels to get lots of sunlight and stay safe for a long time. Here are some things to check before you start building.

Sunlight And Shade

Maximize Sun Exposure

Your solar panels need as much sun as they can get. Find a place that gets sunlight all day. Walk around and see where shadows fall. Trees, buildings, and fences can block the sun. If you see shade, try another spot or trim branches.

Avoid Obstacles

Things like power lines, tall trees, or sheds can make shadows. This can lower your energy output. Keep your panels away from anything that blocks the sun. If you want to add more panels later, leave enough open space.

Tip: Use a solar pathfinder or a phone app to see the sun’s path and find problem spots.

Here is a quick table to help you pick your site:

Soil And Terrain

Soil Stability

The ground under your solar panels must be strong. Soft or sandy soil can move over time. Rocky or uneven ground is harder to work with but can be stronger. Use concrete foundations for rocky areas. Use ground screws for soft soil. A geotechnical report tells you what is under the ground.

Drainage

Water that stays around your ground solar mounting system can cause trouble. Make sure water drains away after rain. Stay away from low spots where water collects. Good drainage keeps your system safe and protects your money.

Ground Clearing

Remove Vegetation

Clear grass, weeds, and brush before you build. Use tools like brush cutters or hire someone to clear the land. This makes building easier and stops future problems.

• Use forestry mulchers for thick brush.

• Take out stumps and roots so panels do not move.

• Protect the soil by not digging too deep.

Level Surface

After clearing, make the ground flat so your panels sit even. Grading the land stops water problems and soil loss. Try to keep the natural slope if you can. This saves time and helps with permits.

• Grade and level the site for a strong base.

• Use less grading to protect plants and get faster approval.

Note: A flat surface makes installation easier and helps your system work better for a long time.

If you want expert help, contact a ground mount solar racking maker like Xiamen Angels Solar. They can help you pick the best system for your site and soil.

Layout Marking

Measure And Stake

Now that you have a clear and level site, it’s time to mark out where your solar panels will go. This step helps you avoid mistakes and makes the installation much easier. You want every panel to sit in the right spot, with enough space for airflow and maintenance.

Start by grabbing your site plan or layout drawing. If you don’t have one, sketch a simple map of your cleared area. Use a tape measure to check the distances. You want to follow the design closely. Each panel needs enough room so you can clean and inspect them later.

Here’s a simple list to guide you through layout marking:

• Survey the site and mark the foundation locations with stakes or spray paint.

• Check with utility location services before you dig. You don’t want to hit any underground cables or pipes.

• Use string lines or chalk to connect your stakes. This helps you see the rows and columns for your solar panels.

• Double-check your measurements. Mistakes here can cause problems later.

• Make sure you leave enough space between rows for walking and maintenance.

Let’s break down the steps in order:

1. Clear the ground so you have a clean working area.

2. Mark where each solar panel and racking system will sit. Use your design layout as a guide.

3. Place stakes at each corner of the panel locations. This shows you exactly where to build.

4. Run string between the stakes to outline the rows. This keeps everything straight.

5. Measure the distance between each stake. Make sure the spacing matches your plan.

6. Check for obstacles like rocks or roots. Move stakes if you need to avoid them.

7. Confirm that all marked spots get full sunlight and are easy to reach.

Tip: If you want professional help, reach out to a ground mount solar racking manufacturer like Xiamen Angels Solar. They can help you with layout marking and provide advice for your specific site.

A good layout makes your solar system work better and last longer. You save time during installation and avoid costly changes later. Careful marking also helps you follow local rules and pass inspections.

If you want to expand your system in the future, plan for extra space now. Think about how you’ll move around the panels for cleaning or repairs. Good layout marking sets you up for success and keeps your solar project on track.

2. Gathering Materials And Tools

You need the right materials and tools before you build. Strong parts and good equipment make your solar system safer. Let’s look at what you need.

Ground Solar Mounting Components

Metal Poles Or Galvanized Pipes

Solar panels should stay in place for many years. Galvanized pipes are a great choice because they do not rust. The zinc layer protects the metal from water and air. This means you spend less money fixing them. These pipes can hold heavy weight and stand up to bad weather. You can put cement around them for extra support.

Solar Panel Racking

Racking holds your solar panels in place. Standard racking makes building easier and safer. You can change the tilt to get more sunlight. If you need help, ask a ground mount solar racking company like Xiamen Angels Solar. They can help you pick the best racking for your land.

Solar Panels

Pick panels that fit your energy needs and space. High-efficiency panels work well if you do not have much room. Bigger panels, like 72-cell ones, give more power but are harder to install. Fewer big panels look neat and are easier to clean.

Inverter And Wiring

An inverter changes solar power into electricity you can use. Good wiring connects everything safely. Make sure your wires are made for outdoor use.

Tools Needed

Post Pounder

A post pounder helps you push metal poles deep into the ground. This tool makes your solar frame strong and steady.

Power And Hand Tools

You need different tools to finish the job:

• Panel lifting straps help you lift panels safely.

• A cart or dolly helps you move panels around.

• An impact drill makes holes in metal or wood.

• A socket wrench set tightens bolts and nuts.

• A torque wrench helps you tighten bolts just right.

• Wire strippers help you get wires ready.

• A multimeter checks electrical parts.

Safety Gear

Stay safe while you work on your solar system. OSHA says you need a clean work area and the right gear. Wear gloves that do not conduct electricity. Put on safety glasses and boots that do not conduct electricity. Wear a hard hat and clothes that resist fire. Use guardrails, safety nets, or harnesses if you work high up.

Accessories

Monitoring System

A monitoring system helps you see how much energy your solar panels make. You can find problems early and keep your system working well.

Grounding Equipment

Grounding equipment keeps your solar system safe and working right. Adjustable tilt mounts help you get the best angle for sunlight. Rail systems and clamps hold everything tight.

Tip: If you want expert advice, ask a ground mount solar racking company like Xiamen Angels Solar. They can help you pick the right materials and accessories for your project.

3. Building The Ground Solar Mounting Structure

Ready to get hands-on? Building the ground solar mounting structure is where your project starts to take shape. You’ll see your hard work pay off as you assemble the frame, anchor it securely, and set the tilt for maximum sunlight.

Frame Assembly

Erect Metal Beams

Start by gathering all your materials. You want to use strong, weather-resistant pipes and beams. Here’s a step-by-step guide to help you build a sturdy frame:

1. Pick materials that fit your site and local weather.

2. Dig holes for the vertical pipes. Make sure each hole is about 12 inches wide. The back holes should be 5.5 feet deep, and the front holes should be 3.5 feet deep.

3. Place the vertical pipes in the holes and fill them with cement. This keeps your frame steady for years.

4. Connect horizontal pipes to the vertical ones using pipe fittings.

5. Attach support beams to the horizontal pipes. Use extra fittings if you need more strength.

6. Connect rails to the beams with straps.

7. You’ll attach the solar panels later, but make sure the rails are straight and secure.

Tip: If you want expert advice, reach out to a ground mount solar racking manufacturer like Xiamen Angels Solar. They can help you choose the best frame for your project.

Secure Connections

Check every connection. Tighten bolts and fittings, but don’t overtighten. You want everything snug, not stressed. Use a torque wrench for the best results. Double-check that all beams and rails line up before you move on.

Anchoring

Drill Or Pound Poles

Anchoring is key for a safe and long-lasting ground solar mounting system. Use a post pounder to drive the metal poles deep into the ground. This tool makes the job easier and helps you reach the right depth.

Use Concrete Footings

Depending on your soil, you might need different anchoring methods. Here’s a quick table to help you pick the best option:

Good drainage keeps your frame safe. Make sure water flows away from the footings.

Tilt And Orientation

Set Optimal Angle

You want your solar panels to catch as much sun as possible. The best tilt angle depends on your location. Most people set the tilt to match their latitude. This helps you get the most energy all year.

• The sun’s position changes with the seasons.

• Panels work best when you adjust the tilt for summer and winter.

• A seasonal tilt adjustment range of about 15 degrees from your latitude works well.

Allow For Monthly Adjustment

If you want even more energy, adjust the tilt every month. Here’s how you can do it:

1. Use saddle brackets to mount the panels.

2. Make a drill press jig for even holes in the angle bar.

3. Secure the frame with stainless steel bolts and wing nuts. This makes it easy to change the tilt.

• Pole top mounts can pivot in the center.

• Ground mounts usually hinge at one edge.

• Leave extra space between rows so panels don’t shade each other.

Note: Adjustable tilt helps you get more power, especially in winter and summer. If you need help, Xiamen Angels Solar can guide you on the best tilt system for your site.

Building a strong frame, anchoring it well, and setting the right tilt will help your ground solar mounting system last for years. Take your time and check each step. You’ll see better results and enjoy more solar energy.

4. Installing Solar Panels

You are close to finishing your solar system. This step is about putting up panels, connecting wires, and making sure everything fits right. Let’s go through each part.

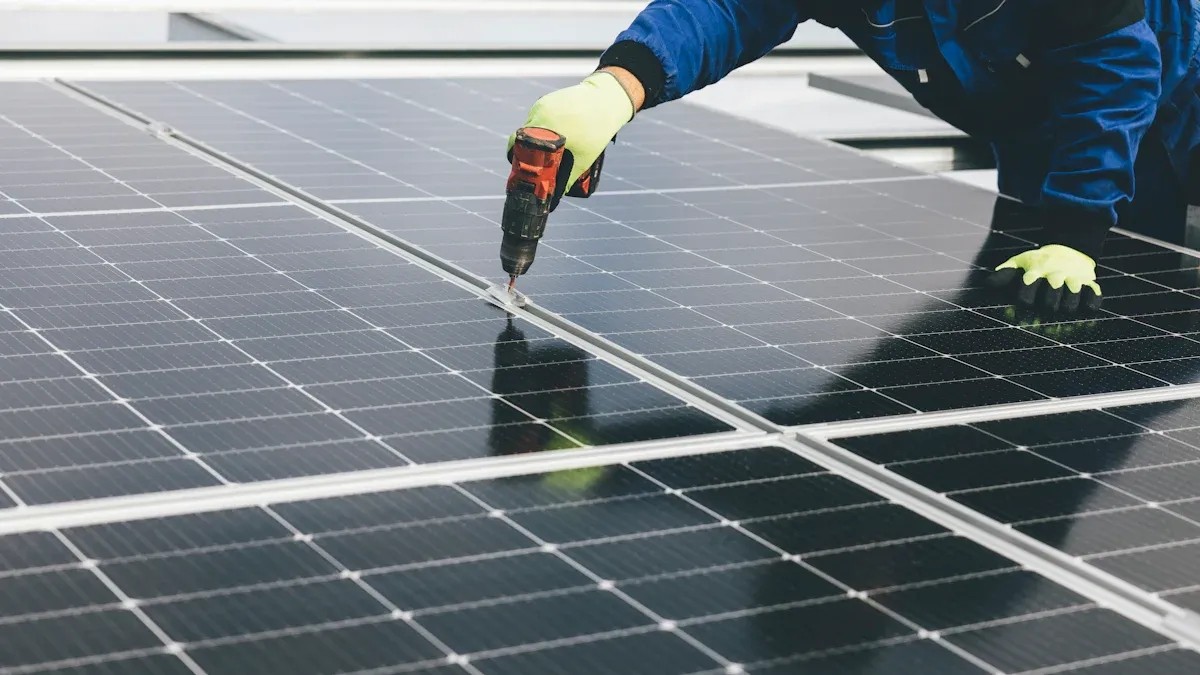

Panel Mounting

Attach To Racking

Lift each solar panel onto the racking system. Use lifting straps or a dolly if you need help. Fasten the panels with clamps and bolts. Do not make the bolts too tight. The panels should be secure, but not squeezed hard. If you are unsure about your racking, ask a ground mount solar racking manufacturer like Xiamen Angels Solar. They can help you choose the best clamps and rails.

Align Panels

Make sure every panel sits straight and even. Check that the panels are level with the rails. This helps air move and makes cleaning easier. Use a tape measure to keep the space between panels the same. If you see gaps or crooked panels, fix them before tightening the bolts.

Panel Wiring

Series Or Parallel

Now you need to wire your panels together. You can use series or parallel wiring. Here is a simple table to help you pick:

Choose series wiring for higher voltage and less cable loss. Pick parallel wiring if you worry about shade on your panels.

Check Polarity

Before you finish wiring, check the polarity of each panel. Here is a simple checklist:

1. Test each panel with a multimeter in sunlight. Make sure the voltage matches what is needed.

2. Mark the positive and negative wires clearly.

3. Strip the wire ends and crimp MC4 connectors tightly.

4. Snap the connectors together until they click.

5. Put a DC breaker between the panels and the charge controller. This keeps your system safe when you need to fix it.

Tip: Always check your connections twice. Good grounding keeps you and your equipment safe.

Final Alignment

Avoid Shadows

Look for anything that might make a shadow on your panels. Even small things like branches or antennas can lower your energy. Change the tilt angles in winter and summer to get more sun. Walk around your panels and check for shade at different times.

Maximize Efficiency

Clean your panels often to remove dust and dirt. Make sure the mounting surfaces are flat and the panels are lined up. You can use a Solar Pathfinder to find hidden shade problems. If you want expert help, Xiamen Angels Solar can check your site and give advice.

Note: Careful alignment and cleaning help your solar panels work better. You will get more energy and have fewer problems over time.

5. Electrical, Safety, And Maintenance

System Wiring

Connect To Inverter

Wiring your solar panels to the inverter is a big step. You want to make sure every connection is safe and works well. Here’s a simple way to do it:

1. Pick the right system parts. You need a combiner box, a DC disconnect switch, and devices that protect against too much current.

2. Wire your solar panels in series. Connect the positive wire of one panel to the negative wire of the next. Use MC4 connectors for a tight fit.

3. If you have more than one string of panels, connect them in parallel inside the combiner box. Check that the total voltage matches what your inverter needs.

Tip: Always double-check your connections before turning on the system. If you need help, a ground mount solar racking manufacturer like Xiamen Angels Solar can guide you.

Run Cables Safely

Running cables outside takes planning. You want your wires to last and stay safe. Here’s a table to help you pick the best method:

Keep wires off the ground and away from water. Use trays or conduits to protect them from weather and animals.

Grounding And Protection

Install Ground Rods

Grounding keeps your solar system safe. You need to connect your panels to the earth using ground rods. Use copper wires to link the panels to the rods. Attach connectors and clamps to the frame so everything stays secure.

• Make sure all equipment meets safety standards.

• Only let trained electricians do the work.

• Label every part clearly.

• Add a way to disconnect from the power grid.

• Include a rapid shutdown feature for emergencies.

Use Surge Protectors

Surge protectors guard your system against sudden spikes in electricity. Install them at key points, like near the inverter and combiner box. This helps prevent damage from lightning or power surges.

Note: Good grounding and surge protection keep your investment safe. If you have questions, Xiamen Angels Solar can help you choose the right products.

Safety And Codes

Permits And Inspections

You need permits and inspections before you finish your solar project. Here’s a table to show what you should expect:

Local Regulations

Local rules can change how you install your solar system. Here’s a quick look at common permits:

Tip: Always check with your city or county before you start. If you need help with permits or inspections, reach out to Xiamen Angels Solar or another ground mount solar racking manufacturer.

Following these steps keeps your solar system safe and legal. You protect your home, your investment, and your community.

Testing And Upkeep

Initial Power-Up

Your ground mount solar system is ready. Now you need to test it and turn it on. This step checks if everything works well and is safe. Here is a simple checklist to help you:

1. Inspect the System

• Look at all the wires. Make sure they are tight and covered.

• Check each solar panel. They should face the sun and be at the right angle.

2. Prepare for Power-Up

• Keep AC and DC switches off. Take out all fuses before you start.

• Use a meter to check DC voltage and polarity after you connect the solar modules in series.

• Test AC voltage at the inverter output. Compare the number with your inverter’s guide.

3. Start-Up Procedure

• Read the manufacturer’s manual. Lift the AC and DC switches as the manual says.

• Turn on the inverter. Watch for the system to make power.

• Set up your monitoring system. Track your energy and look for problems early.

Tip: If you are not sure about wiring or inverter setup, ask a ground mount solar racking manufacturer like Xiamen Angels Solar. Their team can help you avoid mistakes and keep your system safe.

Clean And Inspect

To keep your solar system working well, clean and check it often. You want your panels to make lots of energy every day. Here are the main upkeep jobs you should do:

• Clean the Panels: Dust and dirt block sunlight. Use water and a soft brush to clean your panels. In dusty places, cleaning can help your panels work up to 30% better.

• Manage Vegetation: Cut weeds and grass near your panels. This stops shade and keeps your system strong.

• Check the Structure: Look for rust, loose bolts, or damage after storms. Tighten bolts and fix problems right away.

• Maintain Electrical Parts: Check wires, inverter, and ground fault protection devices. Replace old wires and make sure connections are safe.

• Monitor Performance: Use a monitoring system. Set alerts for drops in energy.

• Protect Against Wildlife: Put up barriers to keep animals away from your panels and wires.

• Schedule Professional Inspections: Plan for experts to check your system once a year. A ground mount solar racking manufacturer like Xiamen Angels Solar can do a full inspection and give advice.

Note: Regular upkeep saves you money and keeps your solar system working well. If you need help, Xiamen Angels Solar offers support and maintenance for ground mount solar systems.

---

You learned how to put in a ground mount solar system. There are five steps. First, get your site ready. Next, gather all your materials. Then, build the frame. After that, install the panels. Last, finish the wiring. Planning helps your system work well. Good installation keeps it strong. Regular care makes it last longer. If you need help, use these resources:

Ground-mounted solar gives you more energy. There are no size limits. Cleaning is easy. Enjoy using the sun’s power!

FAQ

What is a ground mount solar system?

A ground mount solar system uses racks or frames to hold solar panels on the ground. You do not need a roof. You can place the panels where they get the most sun.

Why should I choose a ground mount system over a roof mount?

You get more flexibility with ground mounts. You can pick the best spot for sunlight. Cleaning and repairs are easier. You can also expand your system later.

How do I pick a good ground mount solar racking manufacturer?

Look for a company with strong products, good reviews, and helpful support. Xiamen Angels Solar offers expert advice and quality racking systems for many types of land.

Can I install a ground mount solar system by myself?

Yes, you can install it yourself if you follow safety rules and instructions. If you feel unsure, ask a ground mount solar racking manufacturer like Xiamen Angels Solar for help or hire a pro.

What tools do I need for installation?

You need a post pounder, power drill, wrenches, safety gear, and a level. Some jobs need concrete or ground screws. Xiamen Angels Solar can suggest the right tools for your project.

How do I keep my solar panels working well?

Clean the panels often. Cut grass and weeds nearby. Check for loose bolts or wires. Use a monitoring system to track energy. You can ask Xiamen Angels Solar for maintenance tips.

Do I need permits for a ground mount solar system?

Yes, you need permits. Check with your city or county before you start. A ground mount solar racking manufacturer like Xiamen Angels Solar can help you understand local rules.

How long does a ground mount solar system last?

Most systems last 25 years or more. If you use quality racks from a trusted ground mount solar racking manufacturer, like Xiamen Angels Solar, your system can last even longer.
