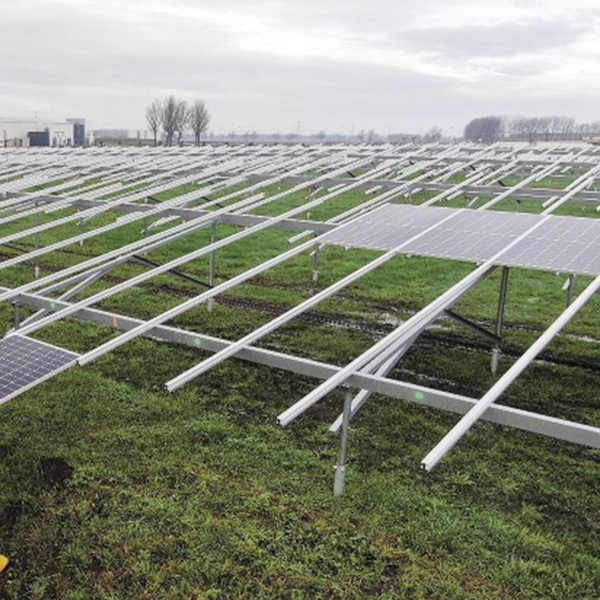

ANGELS SOLAR Aluminum Solar Ground Mounting System Uses Anodized Aluminum Alloy structure, making the Whole System lightweight, Durable, Recyclable, and highly strong. Flexibility in Height and Angle Adjustment Makes the System Applicable for Different Types of Landforms.
Economical, Good Stability, Suitable for Foundation Made by Concrete and Ground screw, High Quality, High Pre-Assembly, Easy Installation.
Product Advantages
1. Fast Installation with Pre-Assembled Components
Most components are pre-assembled and standardized, significantly reducing on-site labor time. Modular design shortens project delivery cycles, increases installation efficiency, and lowers EPC construction costs.
2. Long-Term Reliability with Anti-Corrosion Technology
The steel parts adopt hot-dip galvanization or zinc-magnesium coating for superior corrosion resistance. Combined with anodized aluminum components, the structure maintains stability even in harsh environments such as high humidity, coastal regions, and alkaline soil.
3. Lower Levelized Cost of Energy (LCOE)
The optimized material combination, lightweight design, long service life, and reduced installation labor help lower overall project investment and long-term operating costs, directly contributing to a more competitive LCOE.
4 Easy Transportation & Reduced Logistics Costs
Aluminum components are lightweight and compact, allowing efficient container loading. Fewer SKUs and standardized packaging enhance logistics efficiency for global shipments.
5. Eco-Friendly & Recyclable Materials
Steel and aluminum materials offer a high recycling rate and follow green manufacturing principles, helping projects meet sustainability requirements and environmental certification standards.
6. Customizable Engineering Service

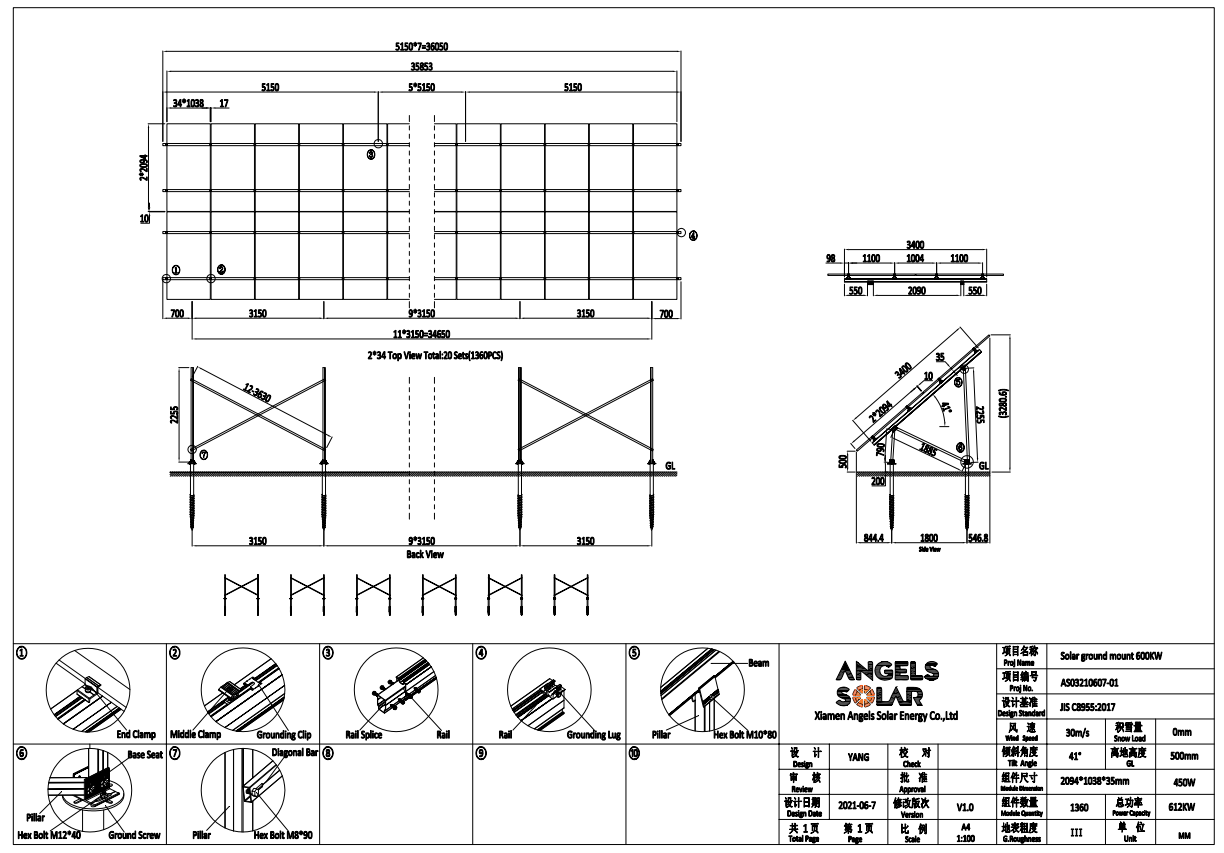

We offer tailor-made structural solutions according to project location, soil conditions, module size, and row spacing. Our engineering team provides complete structural calculations, layout drawings, and technical support for smooth project execution.
is widely applied for small and large solar pants, there have aluminium alloy solutions or steel solutions.
Quick Install
The design of our ground mounting systems comes from our focus on user experience, making our products easy for nearly anyone to install on most types of surfaces.
Budget-control Friendly
Not only are our ground mounting systems affordable, but they are also incredibly durable and have a long lifespan. With a low maintenance cost, ANGELS SOLAR helps you with your budget control.
Well-adapted
The incredible toughness and anti-corrosion properties of our ground mounting brackets allow you to install your solar panels in nearly any kind of climate and topography.
Long-lasting
Every raw material comes from branded suppliers to ensure our ground mounting system gives you a strong and long-lasting foundation on the ground for their solar panels.
Service & Design
ground farm solar structure structures for photovoltaic panels is according to the buyer's requirements below.
1. Please advise solar panels array out
2. used solar panels size (length x width x thickness x power)
3. local max wind speed and snow load
4. The height from the end of solar panels to ground?
5. foundation: cement or ground screw?
Custom Options
。Size
。Materials
。Functionality Requirements
。Additional Options Depending on Your Specific Installation Conditions
Product Features
Good stability
Suitable for different foundations
High pre-assembly
Easy installation
High strength
Product Parameters
| Application: | Ground |
| Tilt angle of panel | 0-45° |
| Snow: | ≤1.5KN/M2 |
| Recommended wind speed: | 60m/s |
| Module orientation: | Landscape/portrait |
| Distance between foundation: | Depending on the load condition |
| Material: | Anodized aluminum 6005 T5, stainless steel 304, Hot-dipped galvanized steel Q235B |
| Standard: | ASCE 7-10, JIS C8955: 2017,EN1090,International Building Code lBC 2009 |
Features

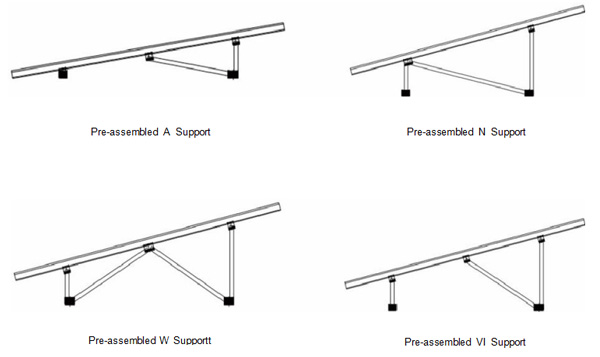

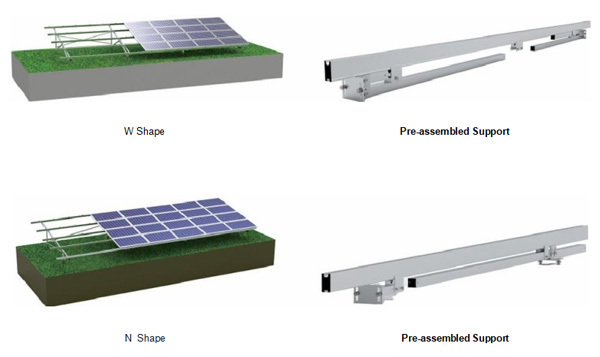

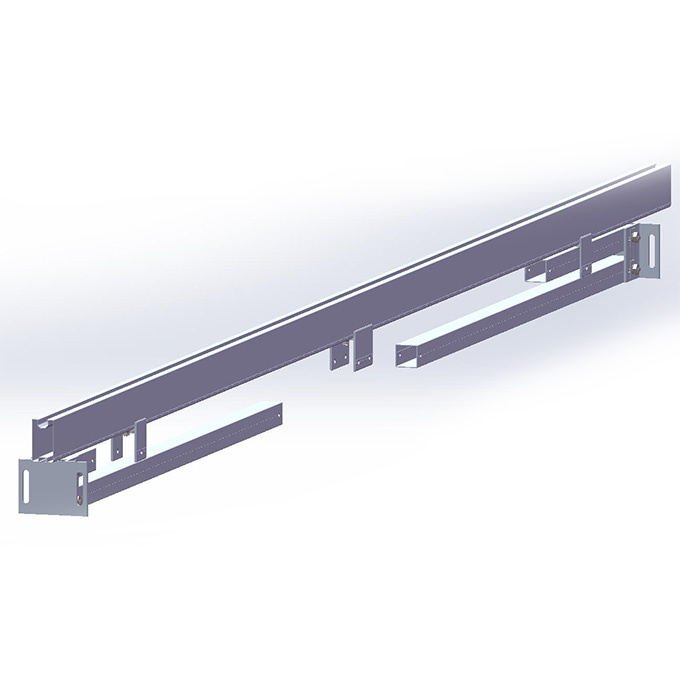

Most of the components are pre-assembled before shipment, there is no need to drilling, cutting and other operations on site, simply adjust locking to complete the installation
Ground screws and concrete foundations optional
Compatible with most modules and most wind loads.
Smart design reduce the difficulty of the installation on the most condition.

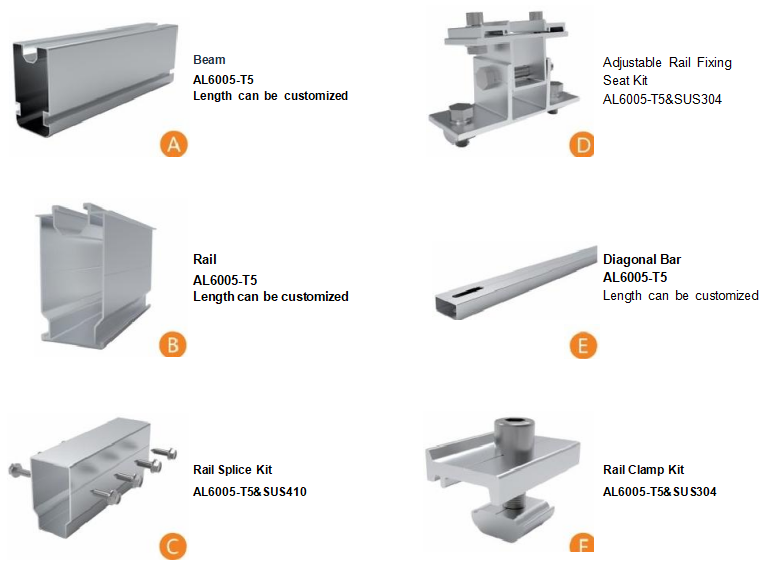

Components
As a reliable ground mounting system manufacturer, ANGELS SOLAR provides a diverse line of ground mount solutions to meet your needs. All our ground mounting brackets are with high-quality, excellent system performance and reliability.
We are one of the vendors of Clenergy who is a listed company, in the while, we OEM for many domestic companies. With cost advantage and service awareness, we ensure your products from materials to finished products. We offer customized solar mounting system solutions to meet your requirements.
We are one of the vendors of Clenergy who is a listed company, in the while, we OEM for many domestic companies. With cost advantage and service awareness, we ensure your products from materials to finished products. We offer customized solar mounting system solutions to meet your requirements.
It is a better way that have our engineers work out a solution according to the local geological conditions, if the wind speed more than 60m/s, or snow load over 1.5 Kn/㎡. Our engineers are experienced enough to deal with all kinds of severe weather.
We recommend the bolt made of 304 stainless steel.
2-3 weeks for regular orders. Customized orders depend on the quantity and agreement.
Negotiable: T/T, L/C, D/P, D/A, OA, Western Union.
Yes, We do, We are strength lies in having own factory and years of experience in producing galvanized-steel,aluminum structures and ODM of solar mounting structures,being professional in the whole quality control,inspection process and a dedicated team of engineers experienced in designing solar mounting structures.
