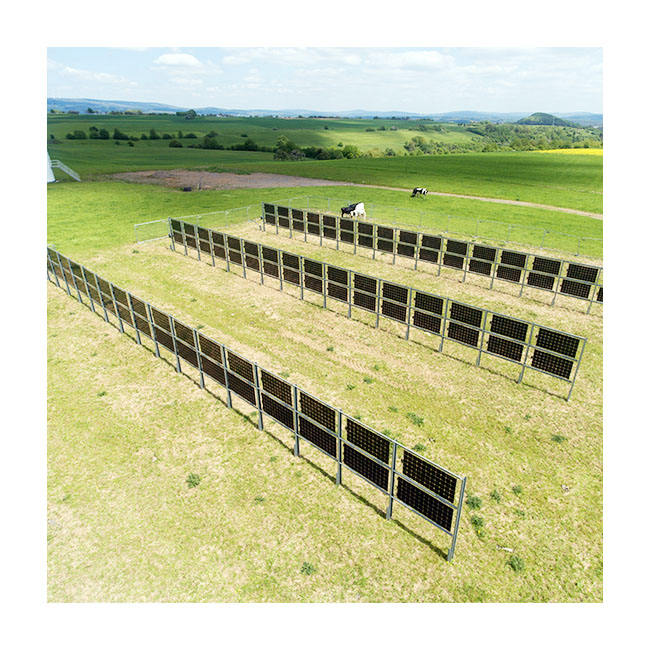

Vertical Bifacial Structure Solar Ground PV Mounting Systems for Open Ground Agriculture or Agricultural Farmland

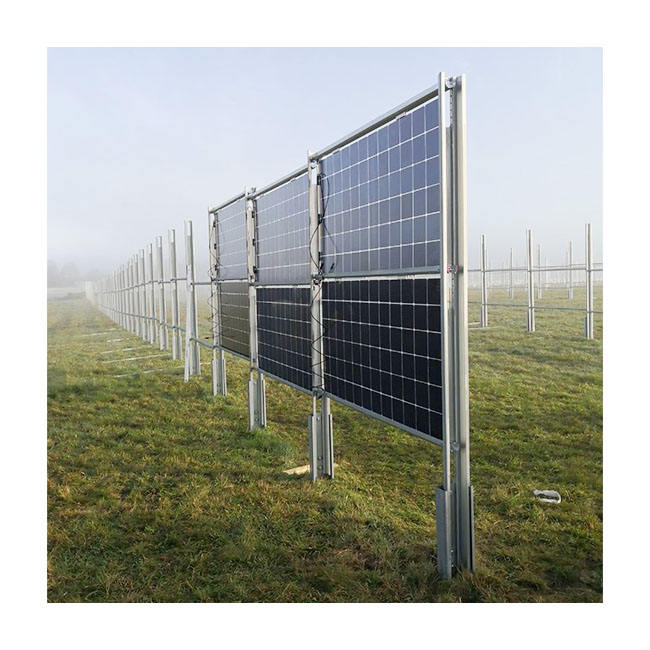

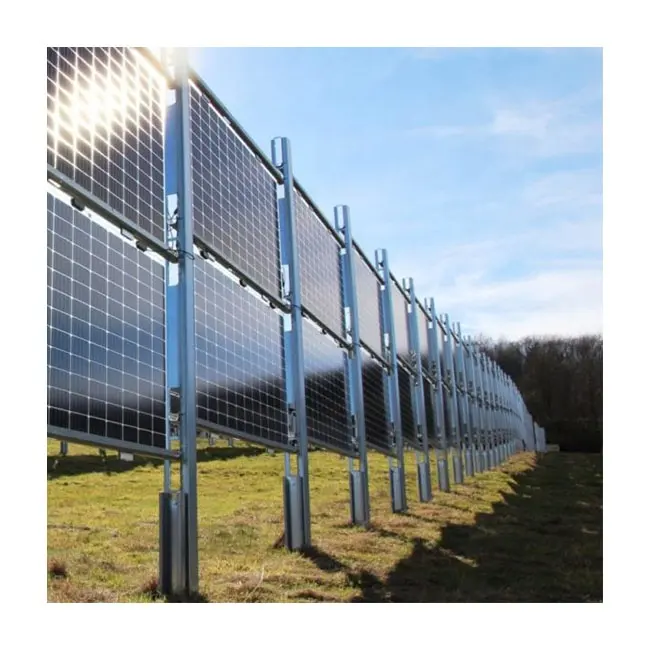

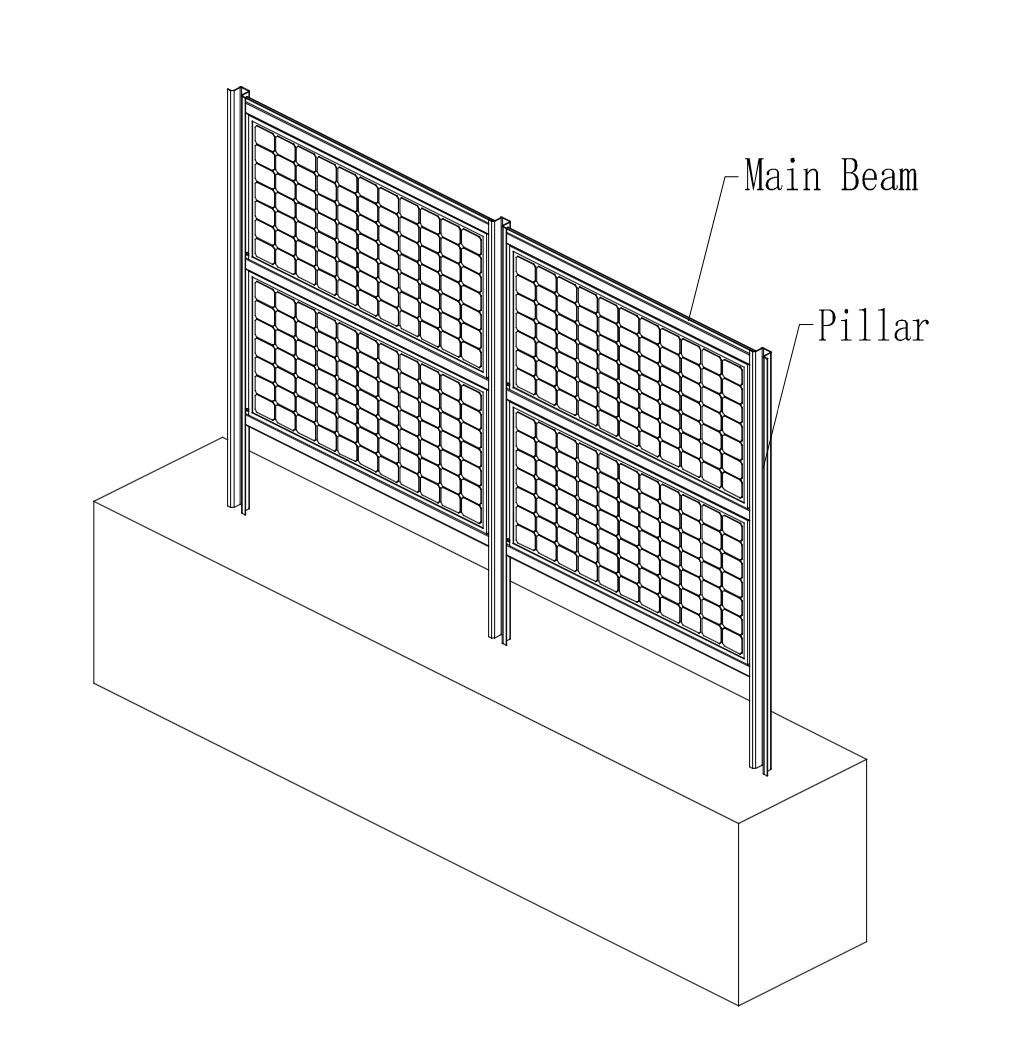

Evolved from ANGELS SOLAR’s freestanding system for the vertical installation of bifacial solar modules on an industrial scale, we developed the bifacial solar fence. The solid steel construction consists of mullions and crossbeams. Two mullions and crossbeams each hold a bifacial glass-glass module as well as a customizable fence element below. The total height of the bifacial fencing system can flexibly be modified. The basic version has a height of 1.50 to 1.80 meters.

The structure can easily accommodate two solar panels.The top design on the back can hide the cables, which is very convenient for storage. There are 4 holes at the connection for easy adjustment up and down. The steel we use comes from the top 2 steel companies in China, and the quality is guaranteed. The warranty is 10 years and the service life is 25 years. We can issue you a quality guarantee.

Our factory located in Xiamen, Fujian Province, China, with a 6,000 square meter factory and production line. We have cooperated with builders, installers, buyers, EPC companies, etc. in various countries around the world, and the clients purchase and place orders with our company all year round.

The Steel material has received 0 customer complaints since the factory was established in 2009. We have more than 15 years of industry experience and are proficient in various structural designs, so please rest assured to cooperate with us.

Application	Farm / Open Ground	Wind Load	Up to 60m/s
Foundation	Concrete Base, Ground Screw, C/H Steel	Snow Load	up to 1.6kn/M2
Panel Layout	Portrait or Landscape	Design Standard	AS/NZS 1170, DIN1055, JIS C8955:2017,IBC2009
Material	Hot-dip Galvanized Steel / Mac Steel	Warranty	10 years warranty, 20 years service life

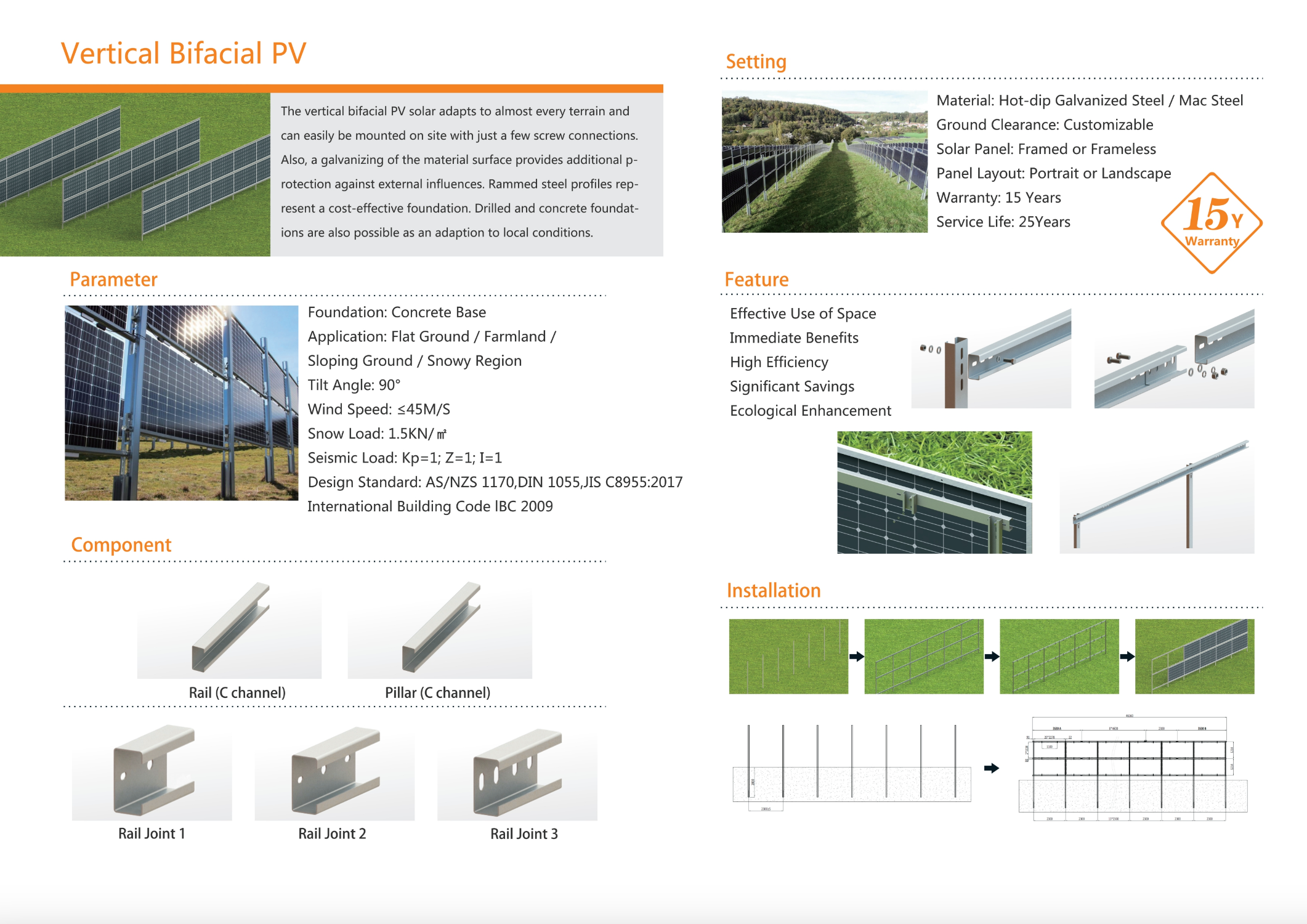

Solution Design

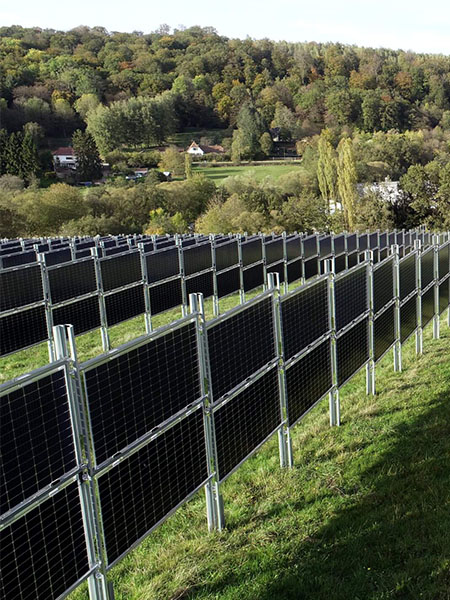

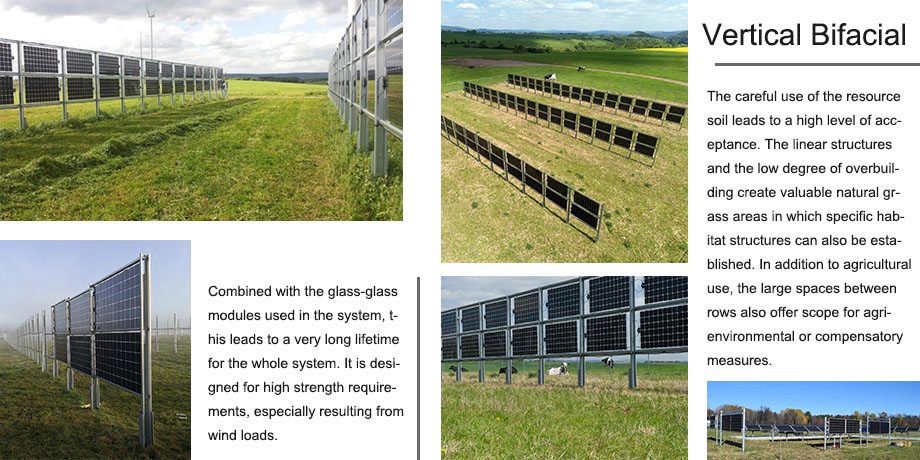

Advantages of vertical PV

❉ Simultaneous use of land for agricultural or ecological purposes

❉ Better network integration: Power generation primarily in the morning and evening hours

❉ Higher yield and higher market price

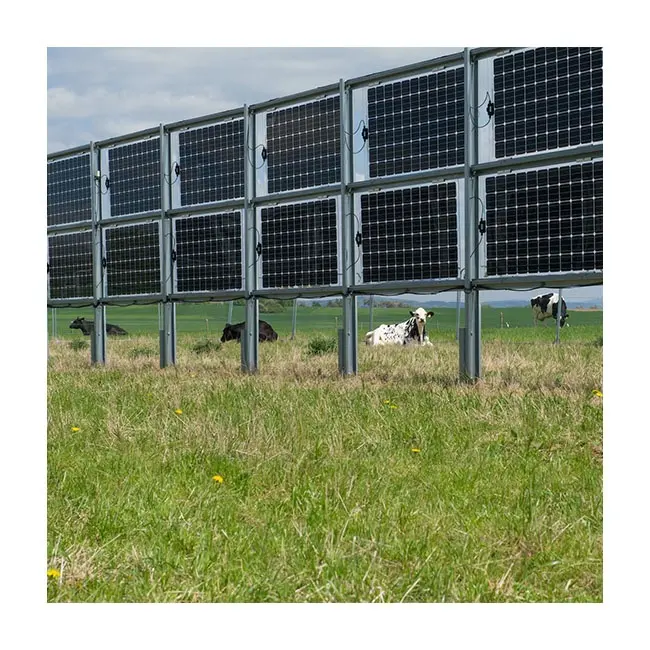

❉ Ecological enhancement, agricultural land use (grazing and pasture land) remains possible

❉ Due to vertical construction no sealing, land usage <1%

❉ Creation of linear habitat structures

Necessary info. for us to design and quote

1.What is your pv panels dimension? _____mm Length x_____mm Width x____mm Thickness

2. how many panels will be mounted for the the project？ _______Nos.

3.How is weather there, such as wind speed and snow load? ___m/s wind speed and____KN/m2 snow load

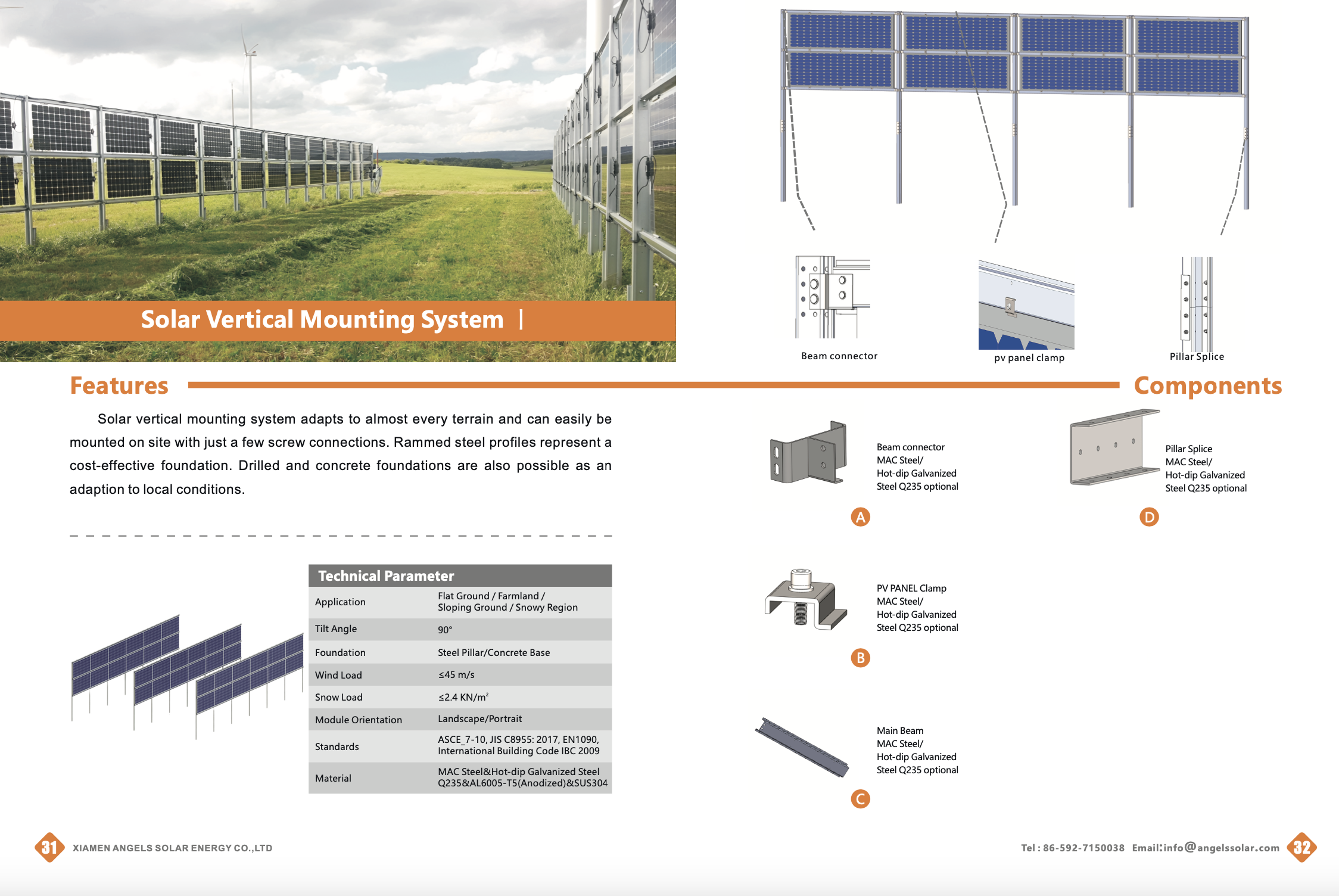

The bifacial solar fence adapts to almost every terrain and can easily be mounted on site with just a few screw connections. Also, a galvanizing of the material surface provides additional protection against external influences. Rammed steel profiles represent a cost-effective foundation. Drilled and concrete foundations are also possible as an adaption to local conditions.

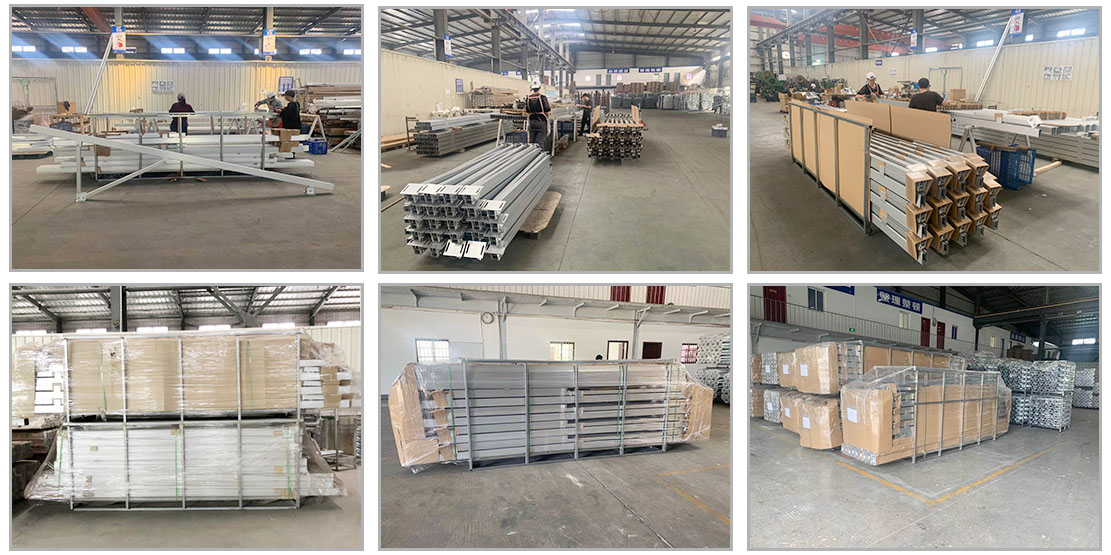

Our Factory

Related Recommend

About Angels Solar:We are a professional solar mounting structure manufacturer and supplier. Our factory located in Xiamen, Fujian Province, China, with a 6,000 square meter factory and production line. We have cooperated with builders, installers, buyers, EPC companies, etc. in various countries around the world, and the clients purchase and place orders with our company all year round stably. We have a professional engineer team which strictly designed it according to your geographical environment and installation conditions. Warranty is 10 years and the service life is 25 years. Delivery Time: 3 weeks. We can also issue a quality guarantee certification for you. We have more than 15 years of industry experience and are proficient in various structural designs, so please rest assured to cooperate with us.

* Delivery Time: Usually 25 working days for Structures
* Warranty: up to 15 years
* Lifespan: 25 years.
* With CE、ISO9001、SGS etc Certificates.
* Strictly According to International Design Standards.

Any further questions, please do not hesitate to contact me.

Tags:

Solar Ground PV Mounting Systems Vertical Bifacial Structure

Why choose ANGELS SOLAR Company?
We are one of the vendors of Clenergy who is a listed company, in the while, we OEM for many domestic companies. With cost advantage and service awareness, we ensure your products from materials to finished products. We offer customized solar mounting system solutions to meet your requirements.
What do you think about your design?
We are one of the vendors of Clenergy who is a listed company, in the while, we OEM for many domestic companies. With cost advantage and service awareness, we ensure your products from materials to finished products. We offer customized solar mounting system solutions to meet your requirements.
What if the wind speed is higher than 60m/s and the snow load bigger than 1.5 Kn/㎡?
It is a better way that have our engineers work out a solution according to the local geological conditions, if the wind speed more than 60m/s, or snow load over 1.5 Kn/㎡. Our engineers are experienced enough to deal with all kinds of severe weather.
What materials is the bolt made of?
We recommend the bolt made of 304 stainless steel.
How long is your lead time?
2-3 weeks for regular orders. Customized orders depend on the quantity and agreement.
What is your payment term?
Negotiable: T/T, L/C, D/P, D/A, OA, Western Union.
Do you provide OEM/ODM service?
Yes, We do, We are strength lies in having own factory and years of experience in producing galvanized-steel,aluminum structures and ODM of solar mounting structures,being professional in the whole quality control,inspection process and a dedicated team of engineers experienced in designing solar mounting structures.
